No one should buy electrical equipment blindly. Losses, voltage drops, imbalances and overvoltage are not solved with a generic recommendation: the network must be measured first.
Technical documentation
Company, equipment, MVROT technology, VTOP, installation drawings, international cases and pilot program, taken from the manufacturer’s presentation.
Volta Canada · VOLTA
We turn your losses into real gains
Directors for Latin America and the Caribbean
Pedro Quintana and Herman Gonzalez
Volta Canada Inc.
Volta Canada Inc. is a Canadian company created and focused on the marketing, representation, transfer, expansion and application of innovative and advanced technologies.
Our contacts, partners and strategic allies on the 5 continents allow us to globalize cutting-edge technologies that can be implemented and leveraged quickly in industrialized countries.
Our physical and human platform and infrastructure is ready to quickly execute the next step in the transfer process for any of our customers.
Technology demonstration project: we have units ready, in any of their references, to be tested in the chosen area and region. We also have measurement equipment and expert engineering for the study, design and installation of our equipment.
ACX Tesla · Volta
Our engineering, research and development company, a manufacturer of specialized electrical equipment, is the creator and owner of the MVROT – VROT – VTOP technologies, which have already been proven, installed and operating worldwide.
ACX Tesla Inc. joins the formula: an electrical engineering, service, consulting and technical support company and strategic affiliate in the development, testing and implementation platforms, serving the Canada and USA regions.
In addition, Volta Canada Inc., a business, marketing, presentation, expansion and transfer company for new technologies, holds the exclusive distribution and representation for Latin America and the Caribbean of the MVROT – VROT – VTOP equipment and related products.
Mission
Based on our own innovation and technological development, the Volta Canada Inc. – Ac Tesla – Energer group has established itself as a leader in the creation, manufacturing, testing, support, transfer and distribution of this new generation of:
“Smart dry-type transformers and high-performance terminals”.
Constantly seeking innovation with technology and engineering to solve tomorrow’s problems today.
MVROT
VTOP
They are equipment or units designed to operate in low and medium voltage ranges for phases in the distribution stage, integrating a novel patented method of transforming power and energy by combining precision components and instruments of a quantum nature.

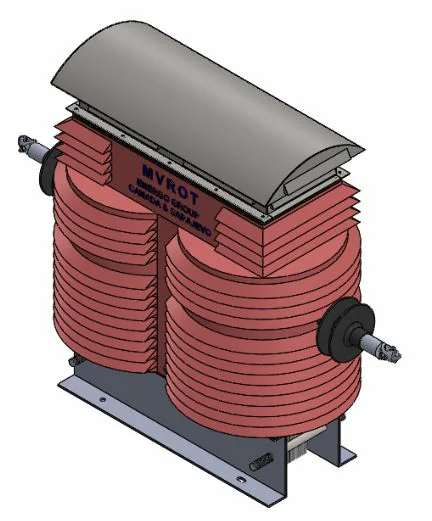

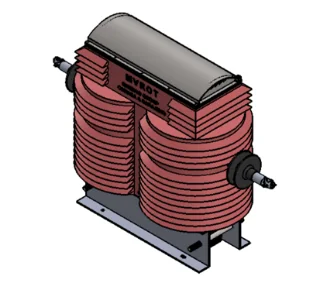

MVROT

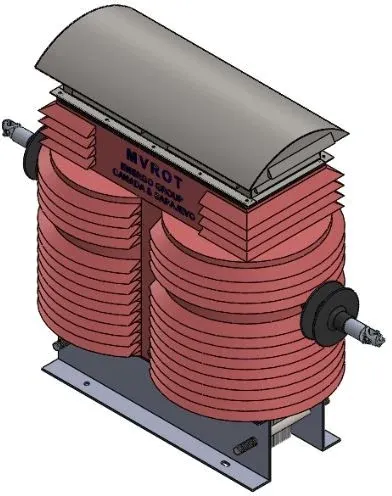

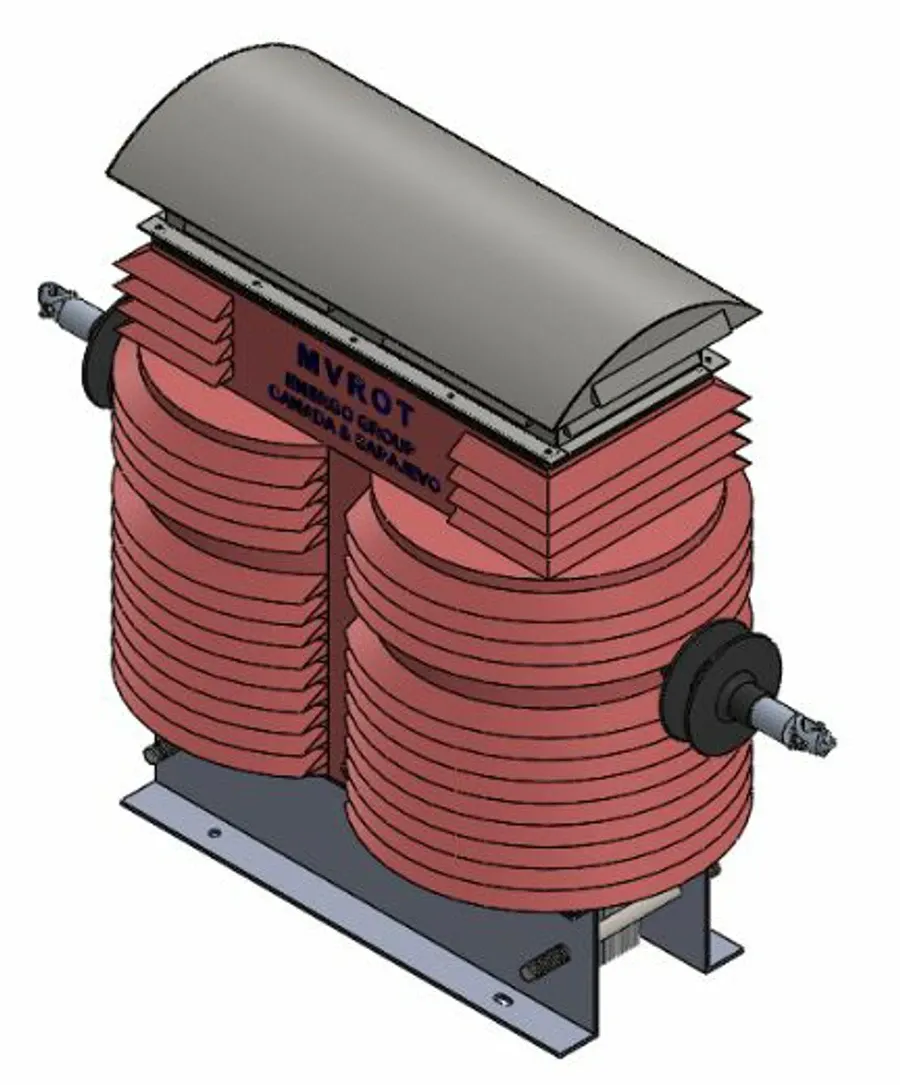

Regulating and optimizing equipment for medium voltages, adaptable to any type of distribution network, that considerably reduces energy losses thanks to a novel technology combining specific instrumentation.
VROT
This unit, with characteristics similar to the previous one but for low-voltage networks, can transfer maximum power to the whole load line, acting as a great alternative and solution to minimize losses in final distribution stages, whether overhead, ground-level or underground.
VTOP
Transformer designed to work at medium voltages, power lines, re-closer mechanisms, disconnectors and automated equipment, built with technology for high-efficiency work, limiting overvoltage and spikes, and preventing power drops.
Adapted to the voltage network, this equipment acts as a protector and substantially reduces energy losses in transmission. It pinpoints accidental or deliberate losses, theft, etc. with GPS prediction. Its composition of precision instruments transforms the cadence factor; the novel combination of a quantum nature makes this unit unique in its kind and benefit, patented and certified.
MVROT + benefit
10%
Typical distribution losses
4%
With the MVROT system

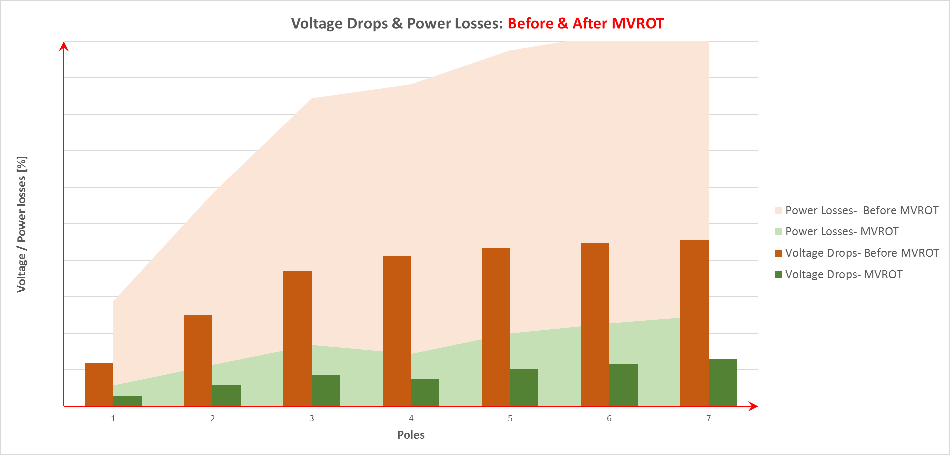

Within the already well-known 10% energy loss in distribution, after implementing our MVROT system those energy losses are reduced to just 4.0%. MVROT pays for itself in a short period of time.
The result is a greater share of electrical energy available for delivery and billing over medium or long distances of the network that supplies end consumers.
MVROT short demonstration video: before-and-after comparison on a real distribution network.
| Primary voltage: X [kV] | 0.6 to 25 |
|---|---|
| Secondary voltage: Y [kV] | 0.347 to 14.4 |
| Power: Sn [kVA] | 185, 555, 1000… |
| Power factor: COS φ | 0.97 |
| Nominal power [W] | 179, 540, 970… |
| BIL [kV] | 30 to 60 |
| Frequency [Hz] | 50 or 60 |
| Ambient temperature [°C] | -50 to +65 |
| Mechanical protection | IP56 / NEMA 3R |
Other sizes for primary voltage in development.

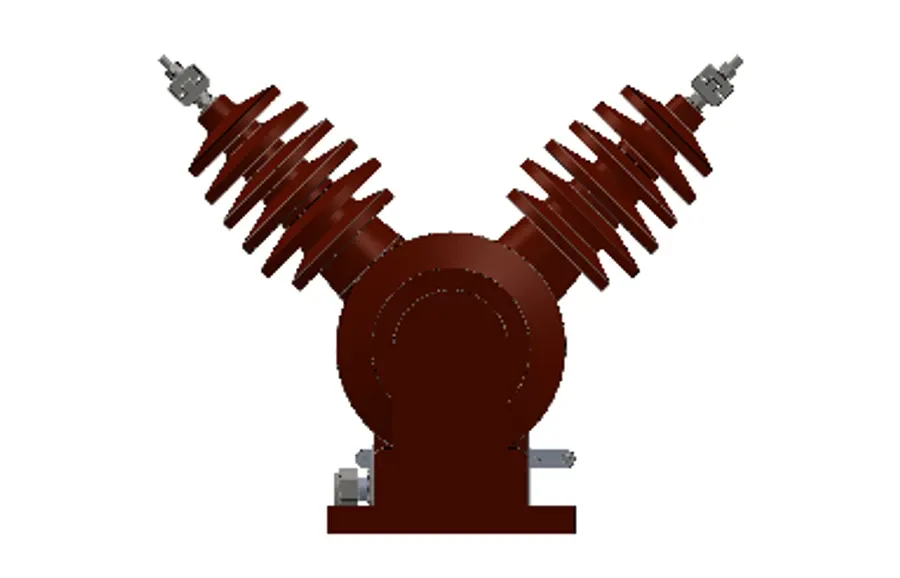

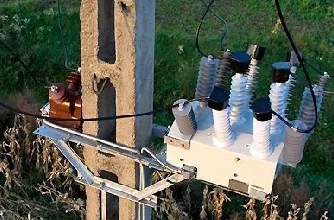

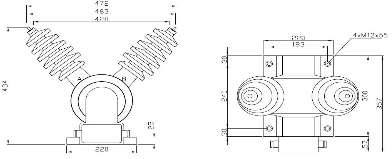

Transformer that works in medium-voltage lines to power the electrical mechanism for re-closers, SCADA disconnectors and automation equipment. VTOP has built-in technology to work efficiently and to limit overvoltage spikes, preventing power failure and potential damage.
| Type | VTOP 2(1)-X |
|---|---|
| Highest voltage for equipment [kV] | 7.2 to 27.6 |
| Rated primary voltage [kV] | X = 2.4 to 27.6 |
| Rated secondary voltage [kV] | 0.12 |
| Winding ratio ranges | 20:1 to 230:1 |
| Power frequency test voltage [kV/1 min] | 7.2 to 55 |
| Lightning impulse test voltage (BIL) [kV] | 60 to 150 |
| Weight [kg] | 25 to 32 |
| Burden / accuracy class, 50/60 Hz [VA/%] | (25/0.2), (65/0.5), (100/1), (200/3), (600/5) |
| Accuracy class, 50/60 Hz (for all types) | 0.2, 0.5, 1, 3, 5 |
| Rated frequency (for all types) | 50 & 60 |
| Temperature range [°C] | -50 to +65 |

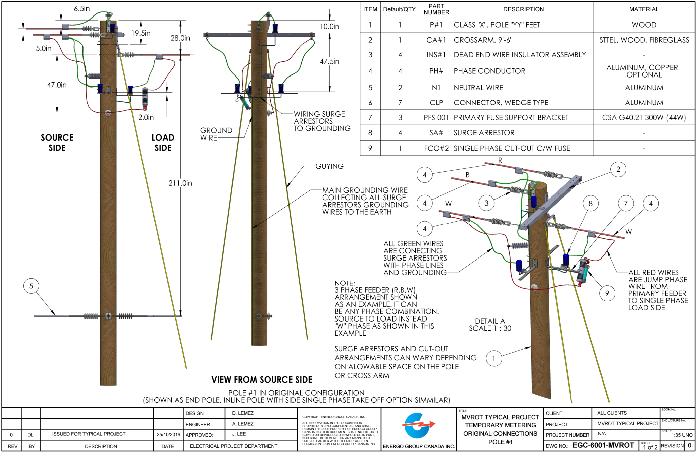

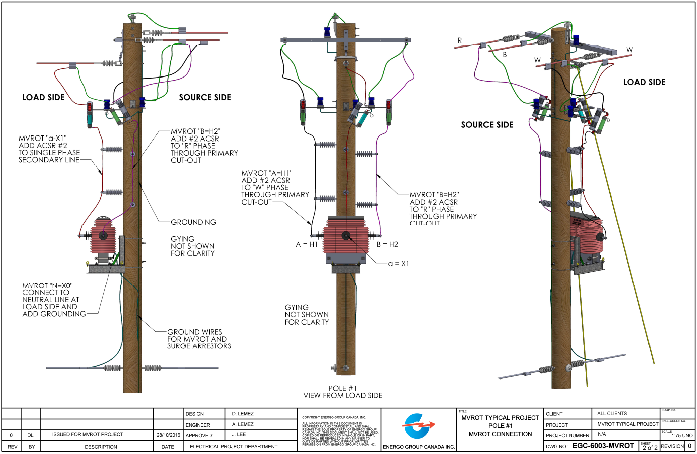

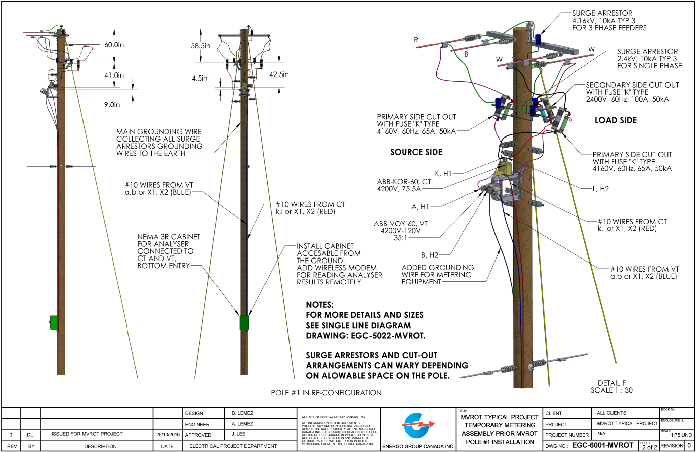

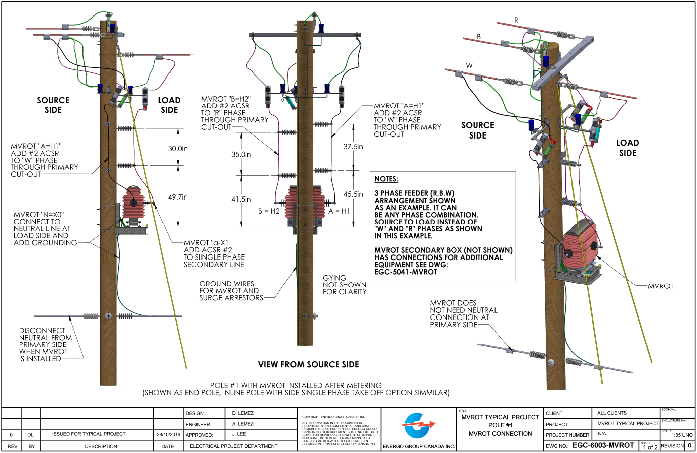

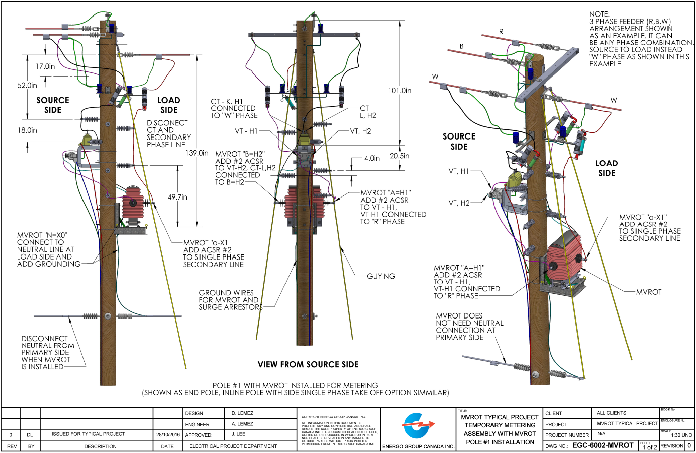

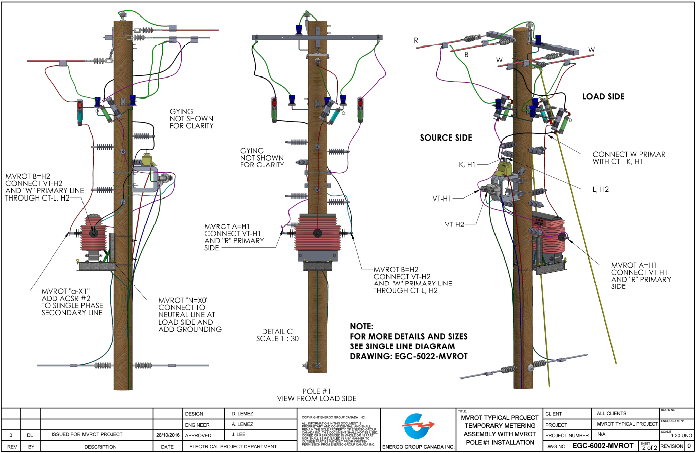

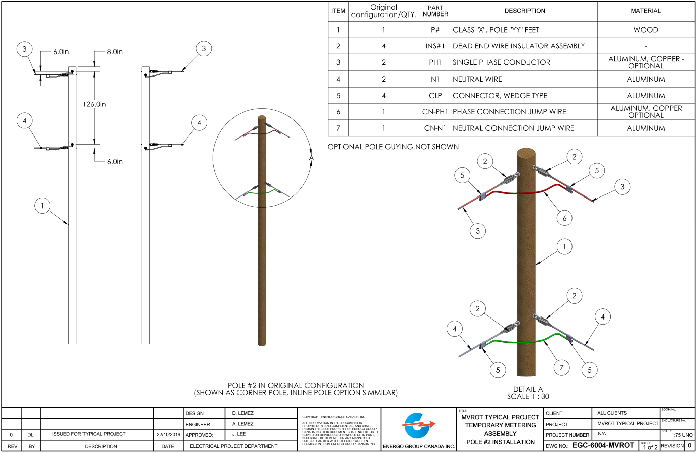

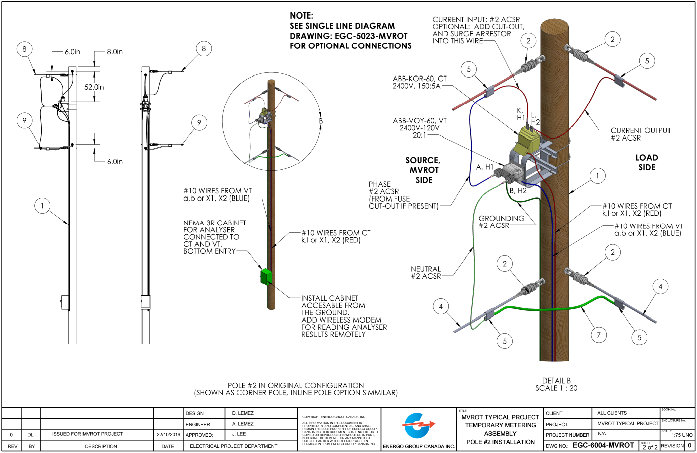

Eight typical MVROT pole installation drawings, covering original connections, temporary metering, MVROT assembly and details. Tap a drawing to enlarge it.
Drawing labels are in English, exactly as delivered by the manufacturer.
Five projects documented by the manufacturer outside Latin America.
Reported by the manufacturer; results vary by network and conditions in each case.
No cost for equipment or technical intervention

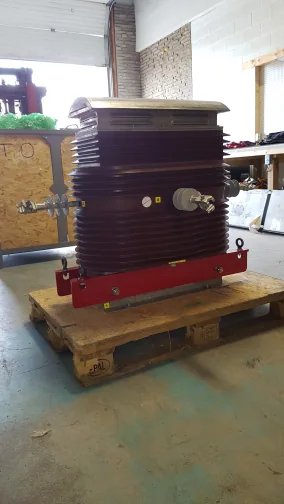

Volta Canada Inc. and/or through its affiliates is ready to offer a pilot project to verify the effectiveness of our equipment, in the area and region determined with the client, at no cost for equipment or technical intervention.
All details, conditions and the scheme of such a pilot will be considered according to the potential and interest in acquiring our equipment, and the adaptation of our technology to your needs.
Kaplan Industry
Write to Kaplan Industry to arrange an evaluation or a pilot project.
Information from the manufacturer’s documentation (Volta Canada Inc.). Results are validated by measurement on each network.
Questions
It should not be presented as a general guarantee. Figures are reported benefits and must be validated according to topology, load and conditions.

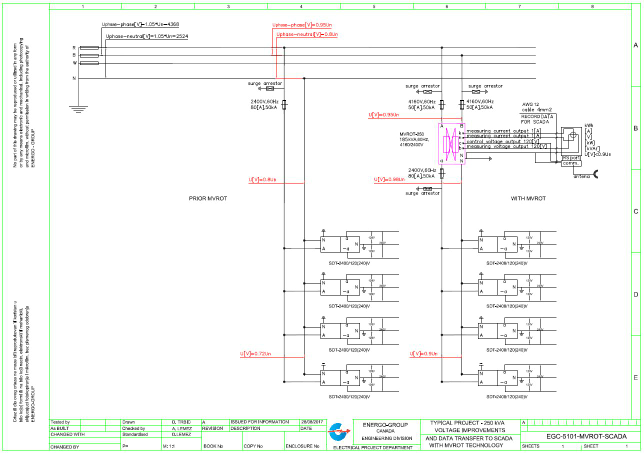

Documentation reports SCADA integration. Feasibility depends on protocols, infrastructure, cybersecurity and compatibility.
Not necessarily. Send diagrams, bills or a description of the problem and we will indicate what measurements are needed.
There is a manufacturer pilot project program, with no equipment or technical intervention cost, to validate results on the client’s network. Scope is defined based on interest and the conditions of each case.
Technical portfolio · PDF
MVROT, VROT and VTOP technology, international cases in Europe and Latin America, and technical specifications in a single document.
